SCADA Solution for Large Pump Stations or Small Treatment Plants

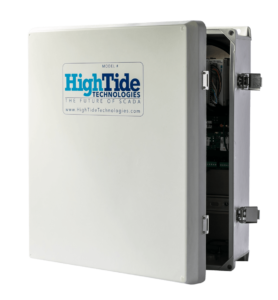

The HTT-3100 is equipped for larger pump stations or small treatment plants. It is equipped with 28 discrete inputs, 6 analog inputs, 2 analog outputs, and 8 discrete outputs. The HTT-3100 also has a built-in power fail monitor and battery backup so that operators can be notified when power is lost and still monitor various alarms. The HTT-3100 works seamlessly with the High Tide Technologies TelemetryVIEW web interface.

Typical Applications

    Water Industry Icon - High Tide Technologies SCADA Systems
HTT-3100 SCADA Features


  • Not only can monitor your applications, but HTT-3100 allows you to control your various system elements
  • No user programming required
  • Easy to install & maintain
  • 24/7 factory support
  • Specifications

    Digital Inputs: 28
    Pulse Counters up to 4
    Analog Inputs: 6
    Digital Outputs 8
    Analog Outputs: 2
    Communications Options: Cellular, Satellite, or Ethernet
    Enclosure: 14in x 16in, Nema 4X FRP or Dinrail kit
    Operating Temperature: -25C to 70C
    Input Power: 100-240V / 50-60Hz
    Backup Battery: 12V 3-5 days

    SCADA for Lift Station Alarms & Monitoring

    High Tide Technologies is tailor-made for the wastewater industry, and many of our customers have chosen us to monitor their lift stations. In addition to simple auto-dialer functionality, we also offer our customers pump statistics, rain gauge data, flow meter reporting, pump amp readings, preventative maintenance alerts, and a convenient …
